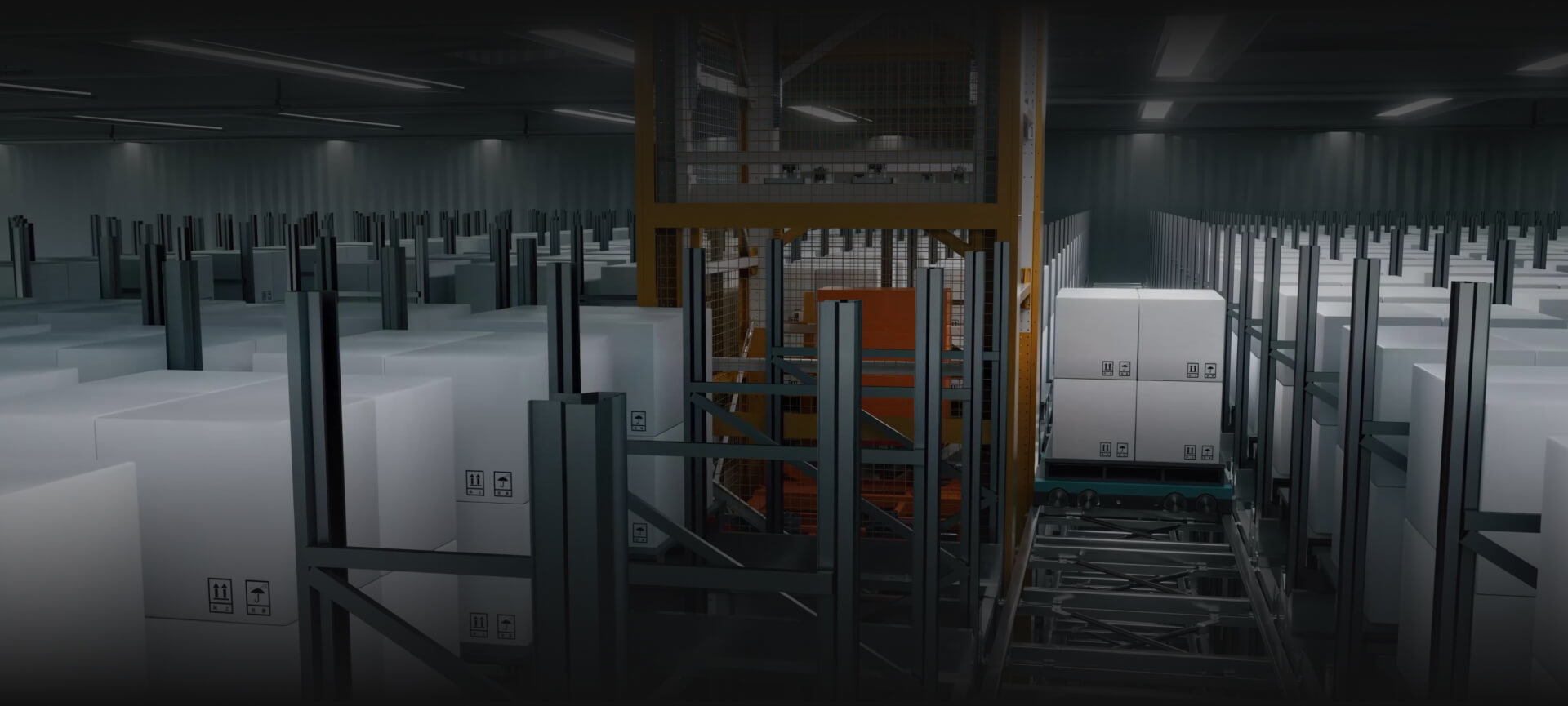

Vertical Transfer. Precise Positioning.
Seamless Coordination. Built-in Reliability.

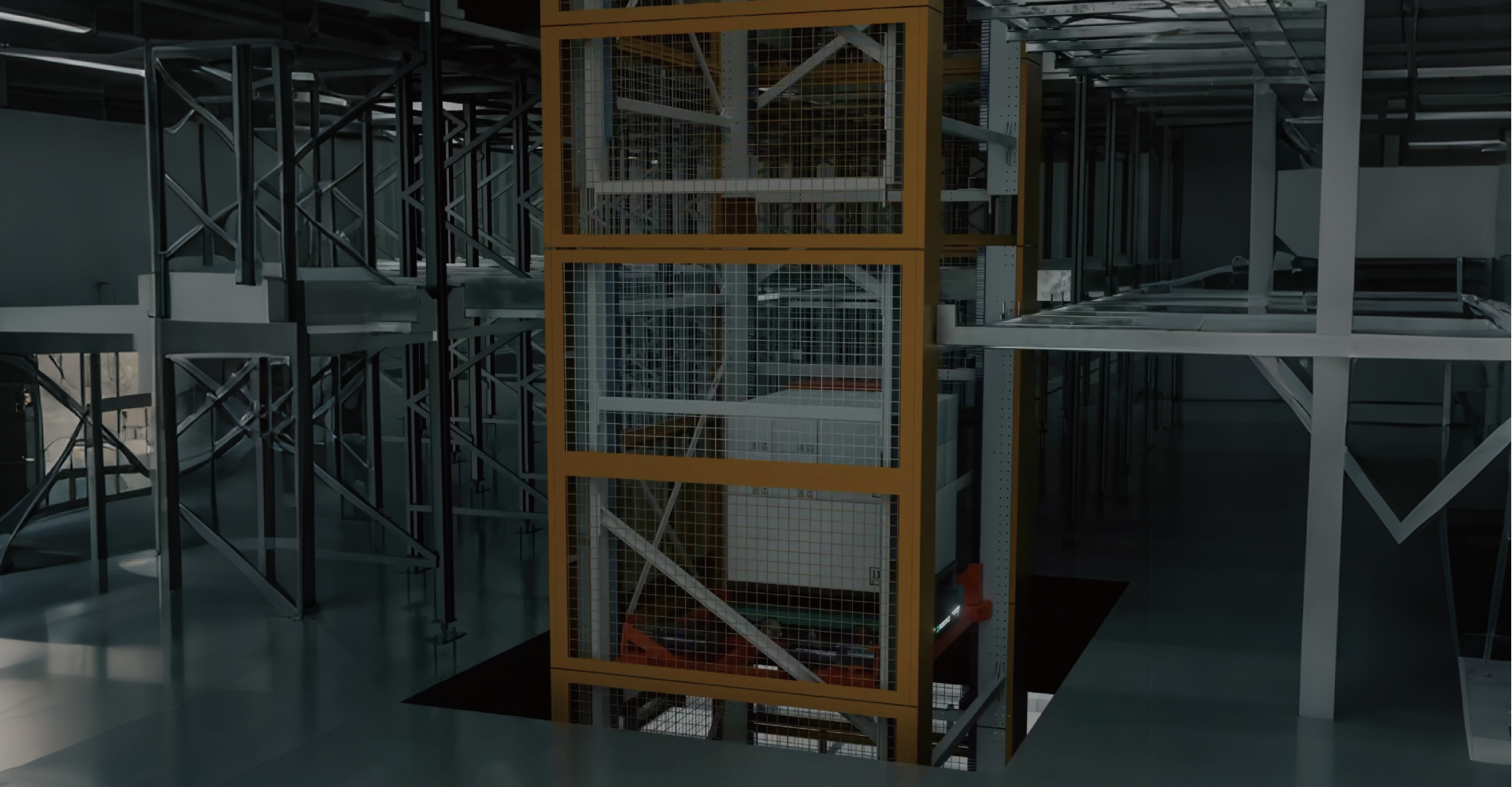

Connecting every level, every aisle, and every workflow, the Lift serves as the critical link within high-density automated storage systems.From stable vertical transfer to accurate shuttle handoff, every movement is engineered for efficiency, safety, and continuous operation.Every lift is built for reliability. Every transfer is designed for precision. Keeping materials moving. Keeping warehouses connected.
Connect with a ZS Robotics expert and get a tailored warehouse automation plan at no cost.
From solution consulting and ROI analysis to site visits and live demonstrations, we're here to help you build a safer, easier, and more efficient warehouse.
SAFETY FIRST
Safety is at the heart of everything we do. From product design and system architecture to daily operation and long-term service, reliability guides every decision we make. Through continuous innovation, rigorous engineering, and relentless attention to detail, we strive to create warehouse automation solutions that are safer, simpler, and more dependable. Because lasting trust is built on a foundation of safety.
Maintenance Safety Block
A mechanical safety block is installed beneath the lift platform during maintenance to provide physical support and prevent unexpected platform movement, ensuring a safe working environment for service personnel.
Platform Over-Limit Detection
The lift platform is equipped with over-limit detection to verify whether the four-way shuttle is fully positioned within the platform area before lifting operation.
If the shuttle exceeds the platform boundary or is not correctly positioned, the system prevents lifting operation and provides an alert, reducing the risk of shuttle tilting, equipment damage, and operational accidents.
Industry-First Lift Interaction Anti-Fall Function
Pure mechanical bidirectional stopper
Cross-equipment interlocking mechanism
Mechanical anti-fall protection even if sensors fail
No electrical control required for fail-safe operation
EASY ALWAYS
Technology creates value when it is easy to use. At ZS Robotics, we simplify complexity through thoughtful design, intuitive operation, and efficient deployment. From implementation and maintenance to everyday warehouse management, every experience is built around ease, efficiency, and accessibility. By making automation simpler to adopt and easier to manage, we help businesses focus on growth while technology works seamlessly in the background.

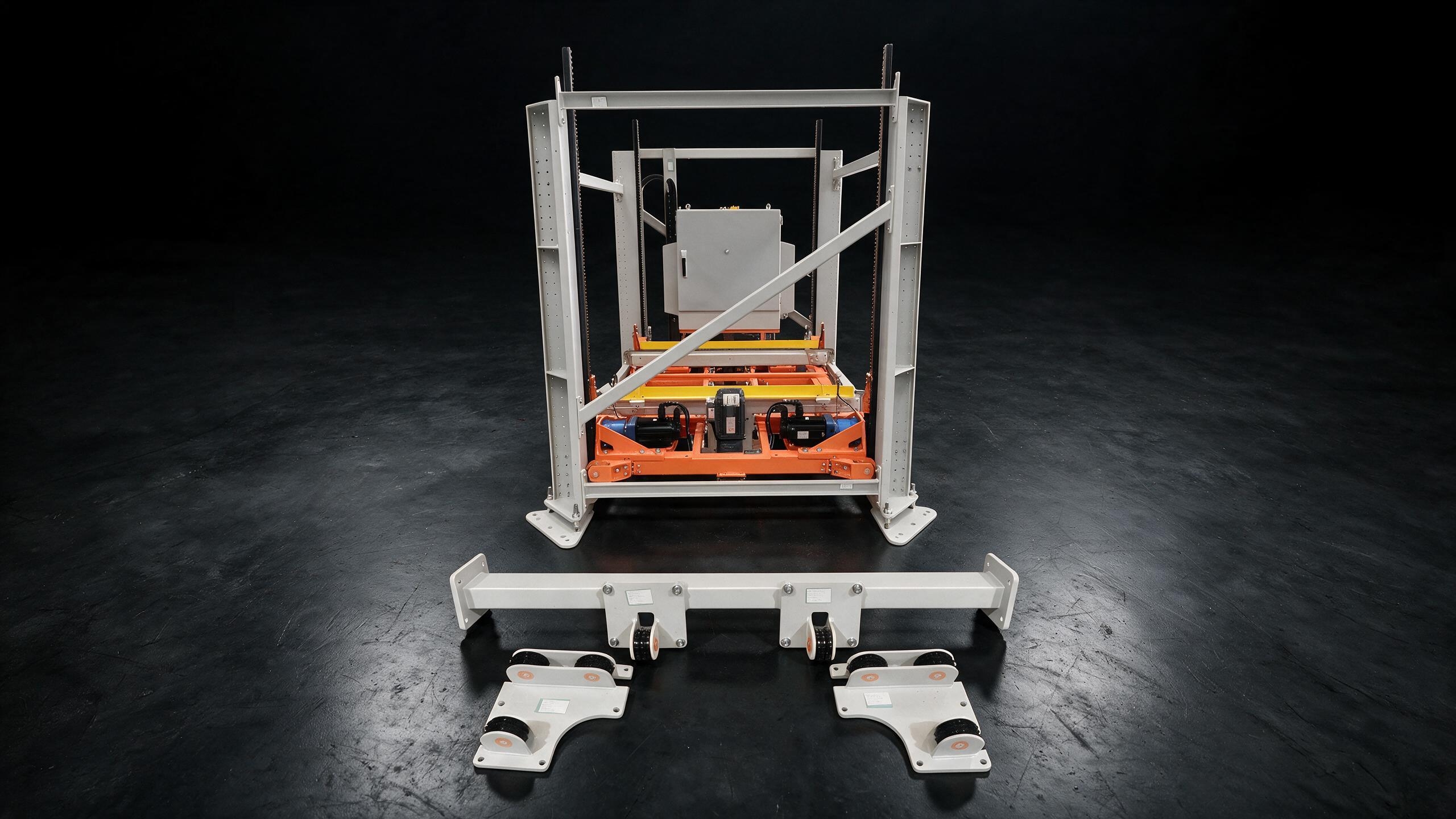

Modular Design

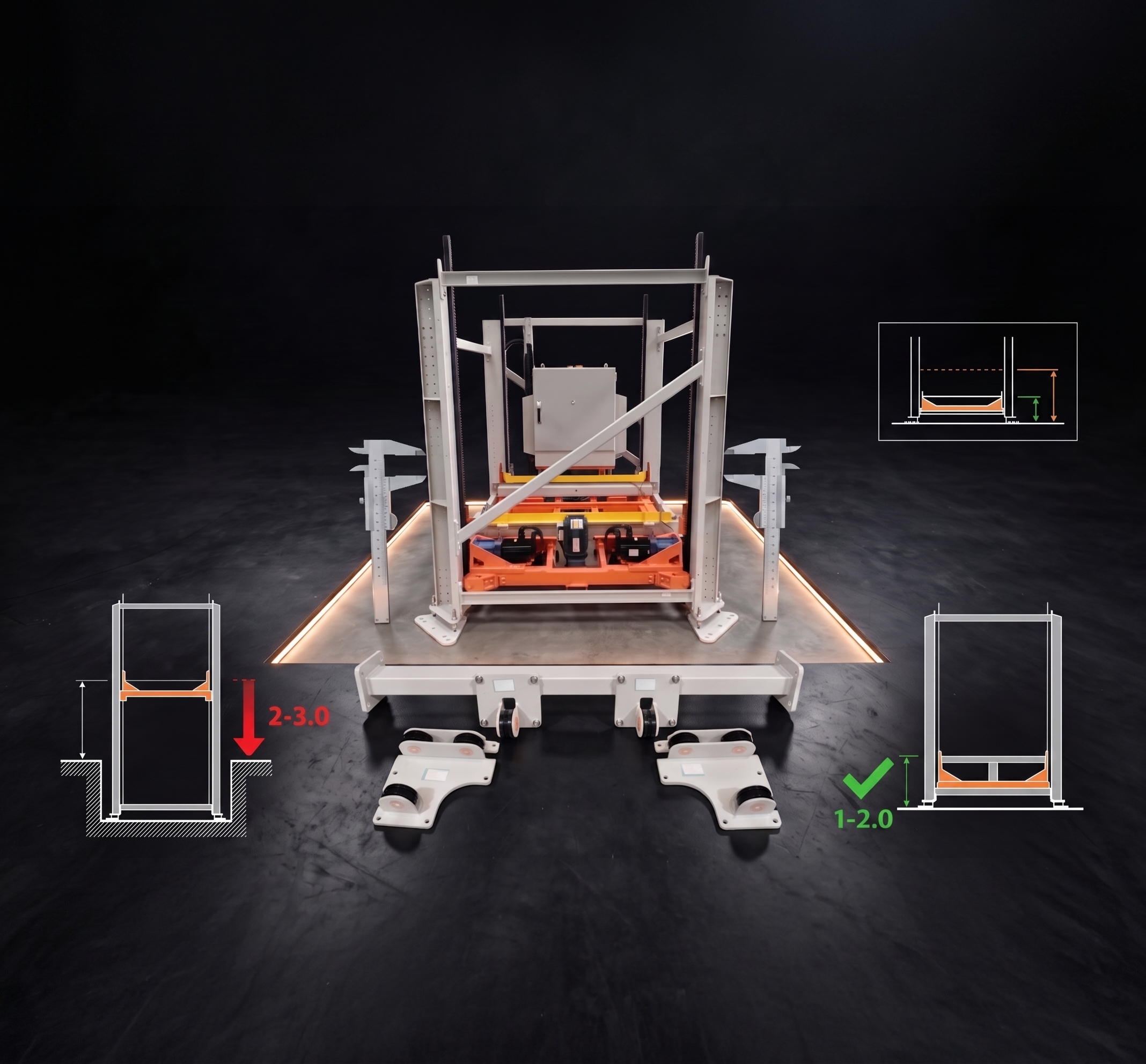

Space-Efficient Design

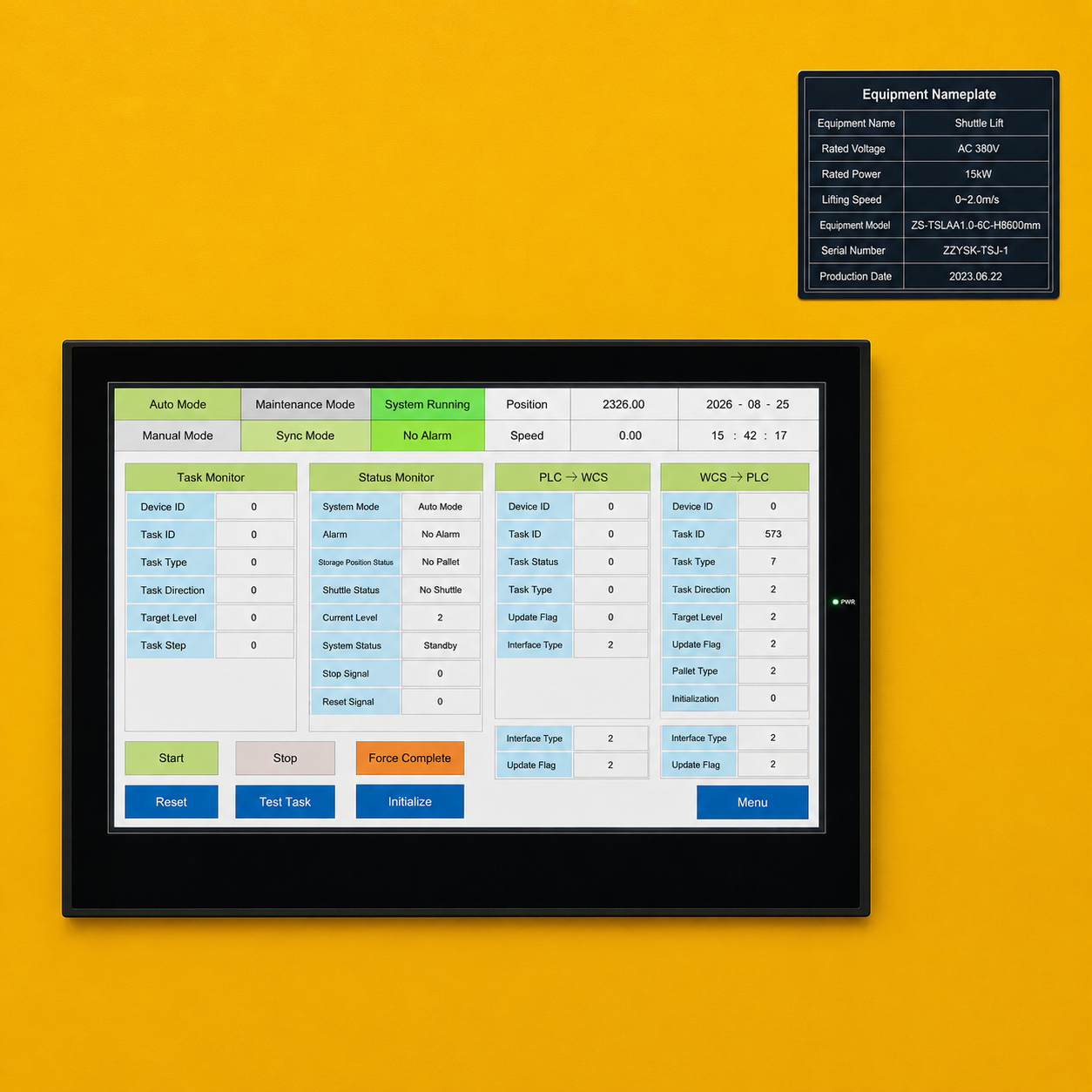

Visualized Intelligent Coordination
ZS Robotics Lift Comparison

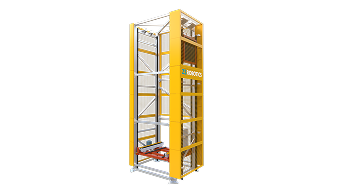

Standard Lift
Flexible Deployment
General-Purpose Applications
Applicable Scenarios
CE, UL & CSA Certified
Certifications
Rack & Pinion
Lifting System
PLC (Xinje / Inovance)
Control Unit
≥36 m/min
Full Load Lifting Speed
≥36 m/min
No Load Lifting Speed
≥12 m/min
Conveying Speed
±2 mm
Positioning Accuracy
Chain Drive
Horizontal Drive
-25°C ~ 50°C
Operating Temperature

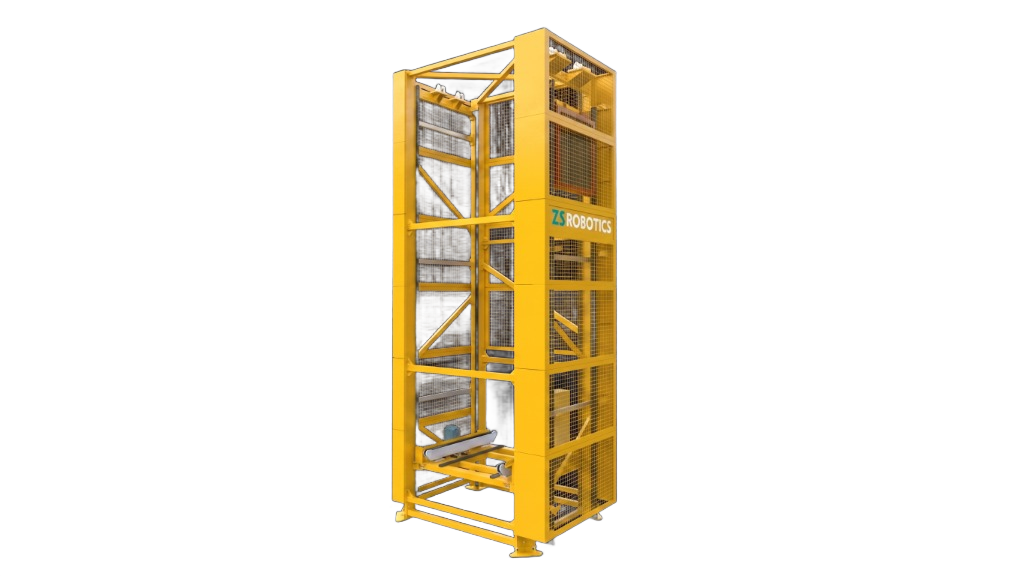

High-Speed Lift
High-Throughput
Fast-Paced Operations
Applicable Scenarios
CE, UL & CSA Certified
Certifications
Rack & Pinion
Lifting System
PLC (Xinje / Inovance)
Control Unit
60 m/min
Full Load Lifting Speed
60 m/min
No Load Lifting Speed
≥12 m/min
Conveying Speed
±2 mm
Positioning Accuracy
Chain Drive
Horizontal Drive
-25°C ~ 50°C
Operating Temperature

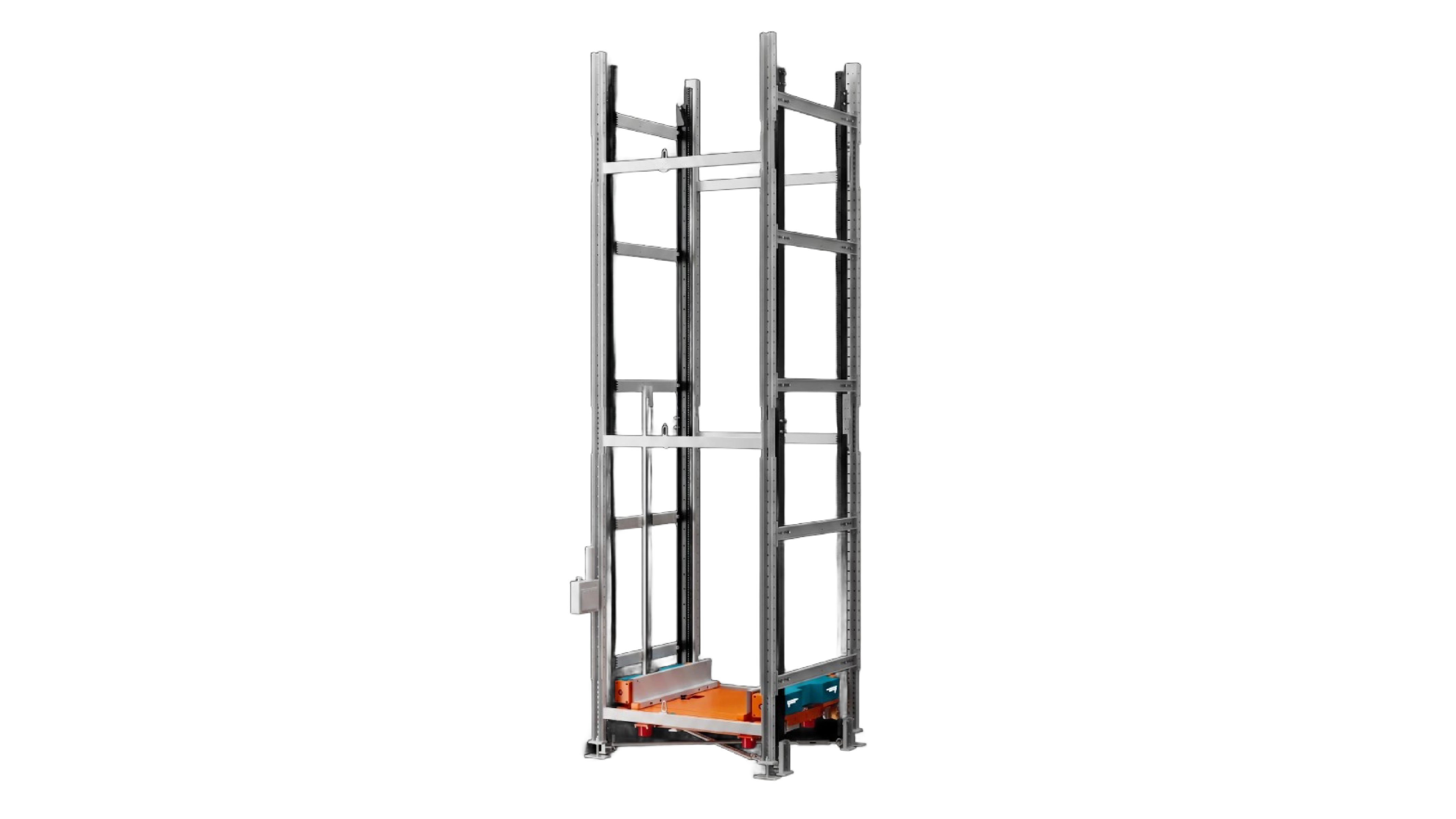

Single-Position Lift
Space-Saving Design
Low-Height Warehouses
Applicable Scenarios
CE, UL & CSA Certified
Certifications
Rack & Pinion
Lifting System
PLC (Xinje / Inovance)
Control Unit
≥36 m/min
Full Load Lifting Speed
≥36 m/min
No Load Lifting Speed
≥12 m/min
Conveying Speed
±2 mm
Positioning Accuracy
Chain Drive
Horizontal Drive
-25°C ~ 50°C
Operating Temperature
Single-Position Lift
